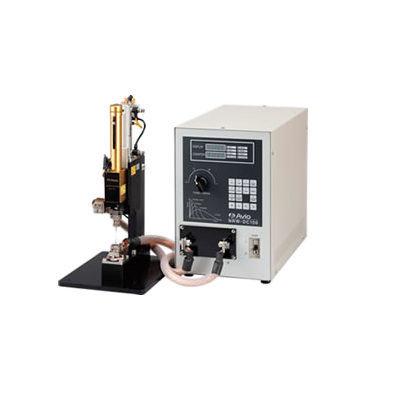

Condenser Type NRW-DC150

Suitable for Welding of Battery Tab, Aluminum and Copper.
Using large-capacity energy storage, with quick release of weld energy (discharge time on the order of a few ms).

Rapid Release of Energy Using High Capacitance Energy Storage

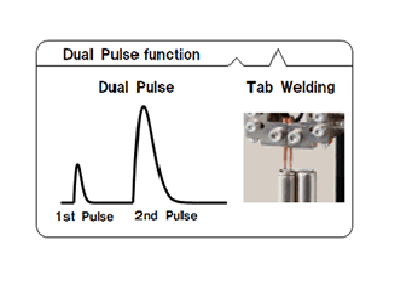

  • Dual Pulse Function Minimizes Welding Spark and Improves Welding Quality
  • Suitable for Aluminum, Copper, as well as other Welding Materials
  • Deformation and Burning is Minimized due to Short, Concentrated Energy Burst
  • Fast charging time improves productivity (Welding Speed 75W・S 120Shots/ min)

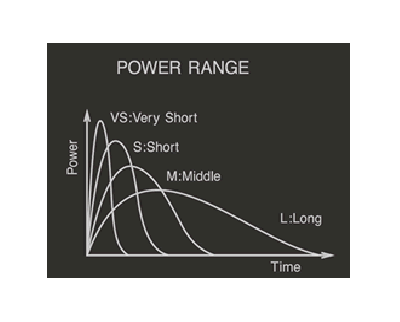

  • VS (Very Short) mode allows to obtain peak welding current same as 200W・S type
