Description

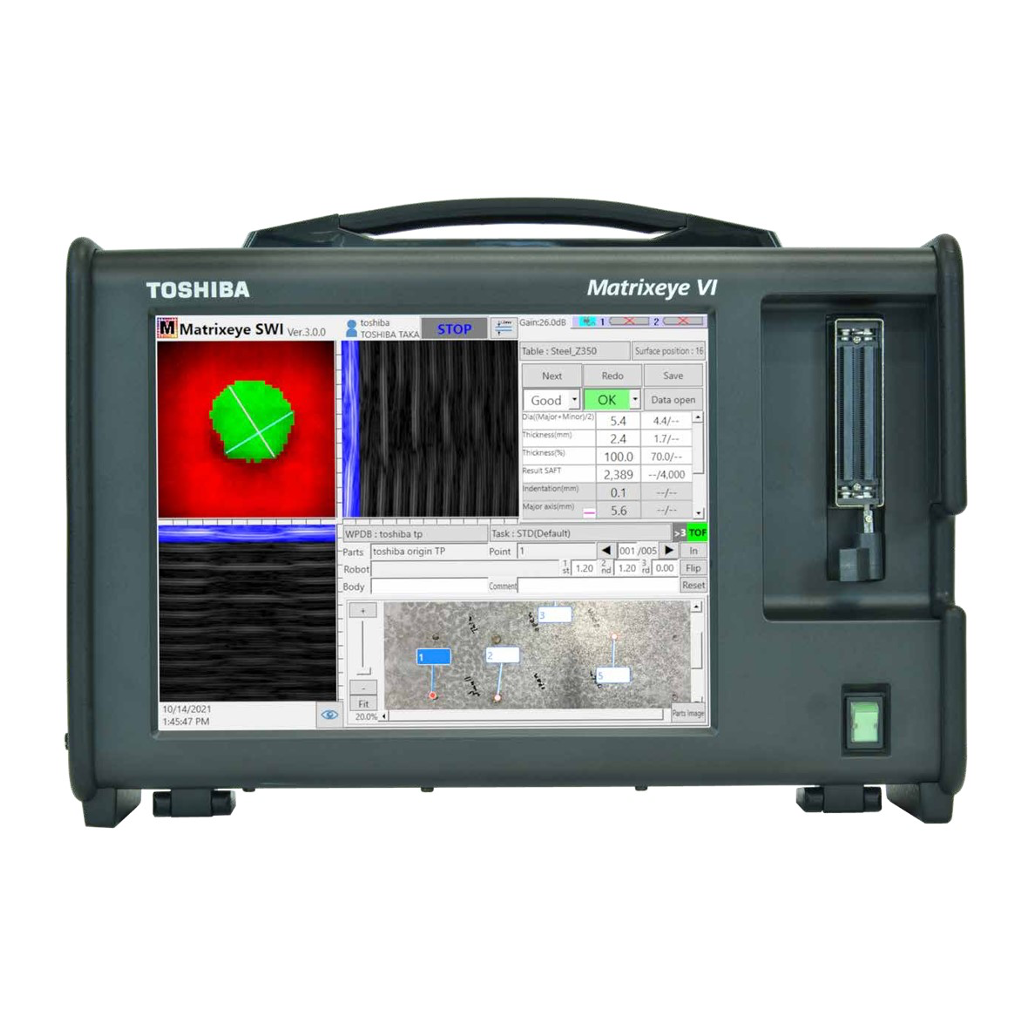

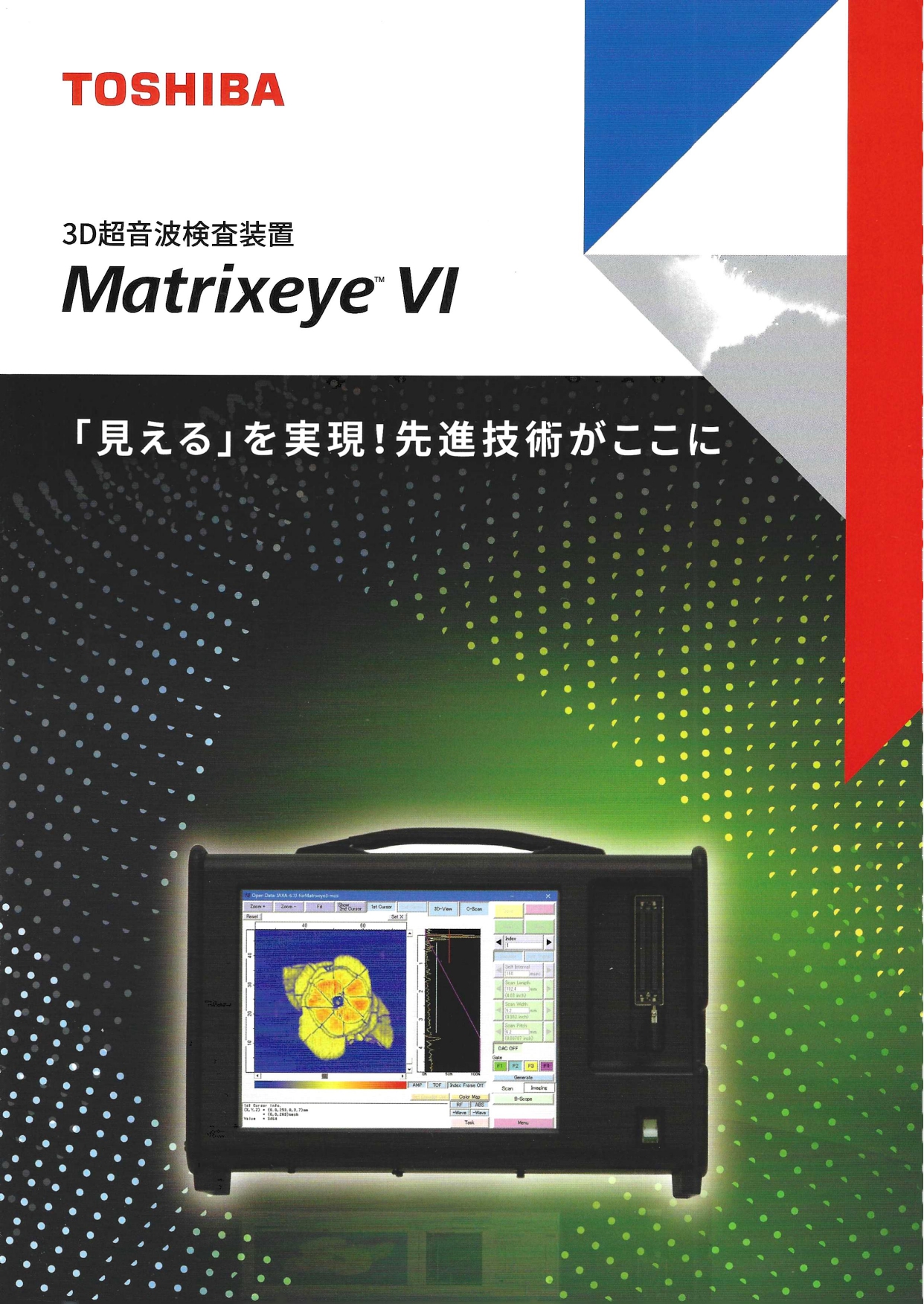

Matrixeye™ VI for welding inspection

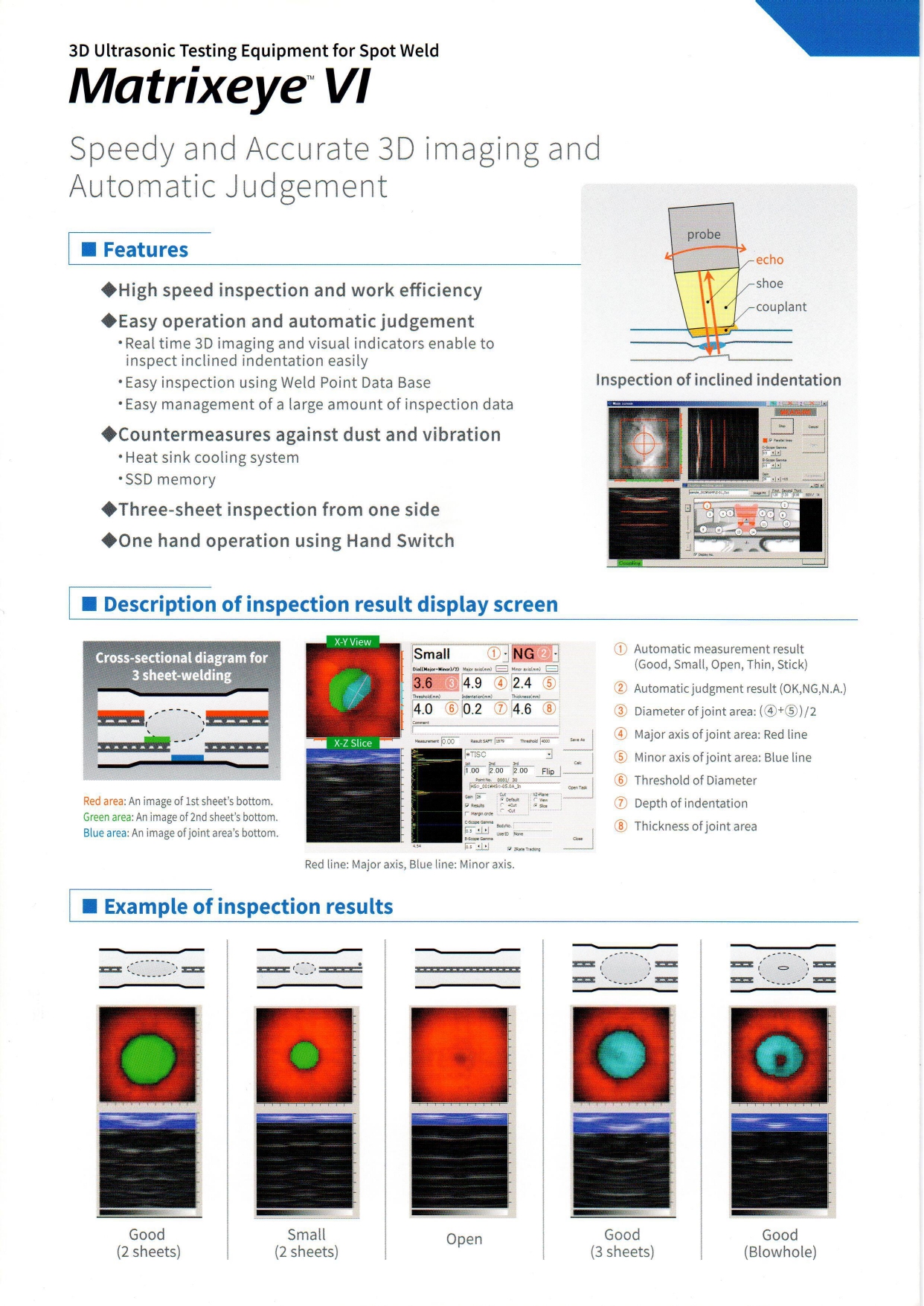

- ¬ Features

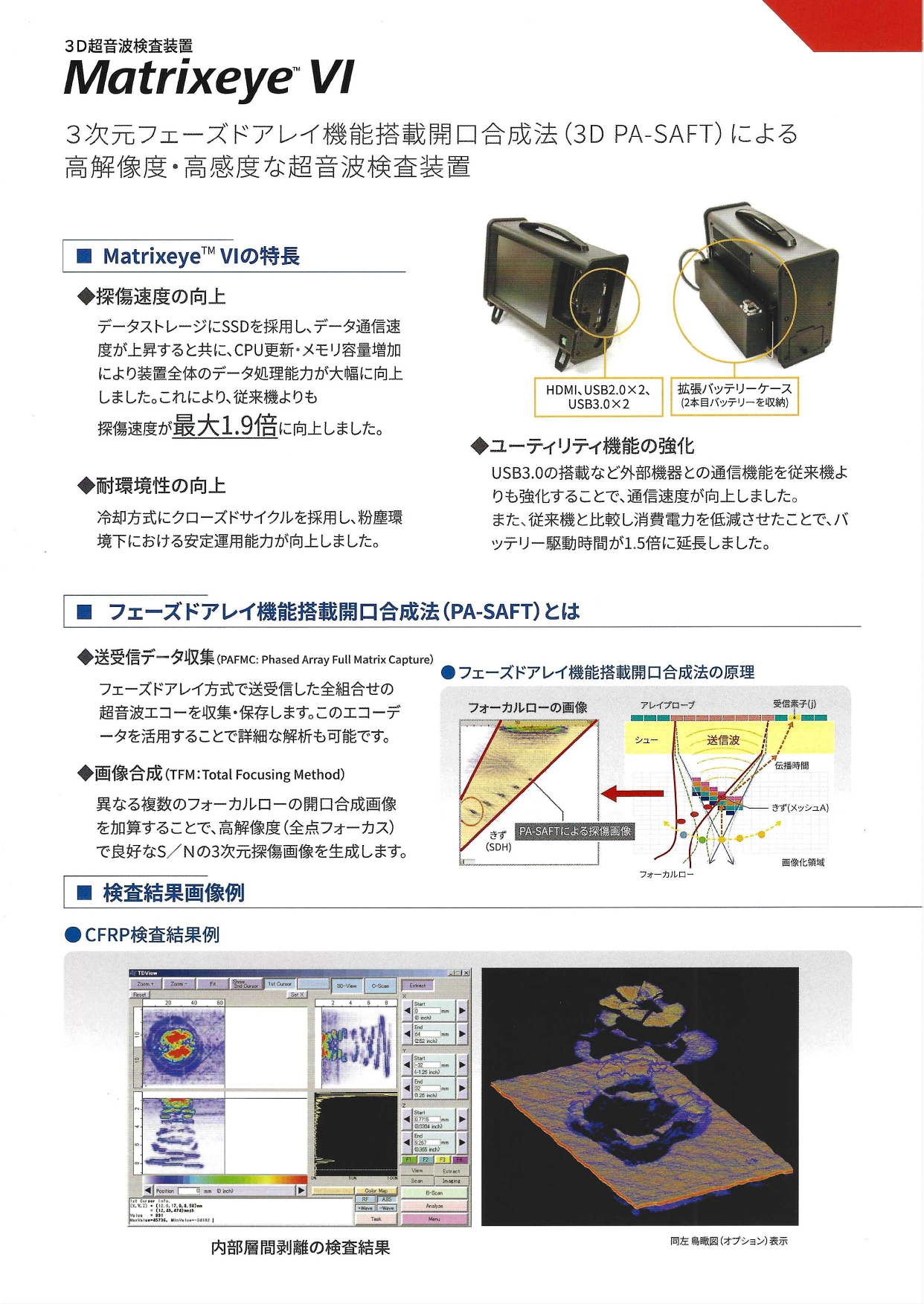

- ¬ The world-first 3D SAFT(*1)inspection equipment with phased array function which enables higher resolution and higher sensitivity
(*1)SAFT:Synthetic Aperture Focusing Technique
- ¬ Feature 1: Easy-to-see inspection system
Displays high-definition 3D images using a uniquely-developed synthetic aperture method - ¬ Feature 2: Automatic pass/fail determination with high degree of accuracy
Measures series of weld points in a parts according to DB(Data Base). Equipped with a function for press welding detection. - ¬ Feature 3: No need for replacement of probes
Equipped with a 64-channel matrix probe, eliminating the need for replacement of probes depending on the diameter of welding parts. - ¬ Inspection example
Inspection Result Screen

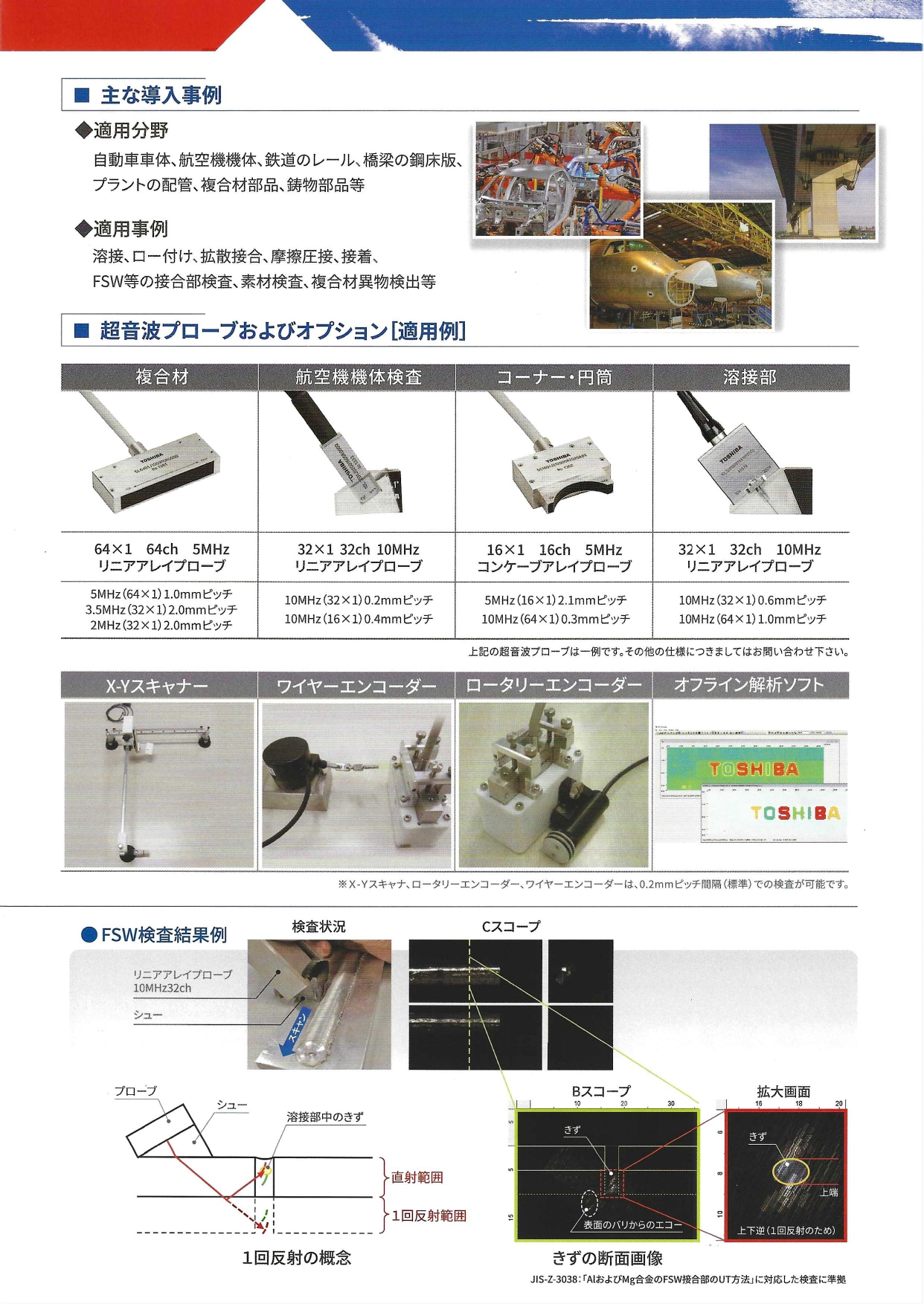

Inspection examples

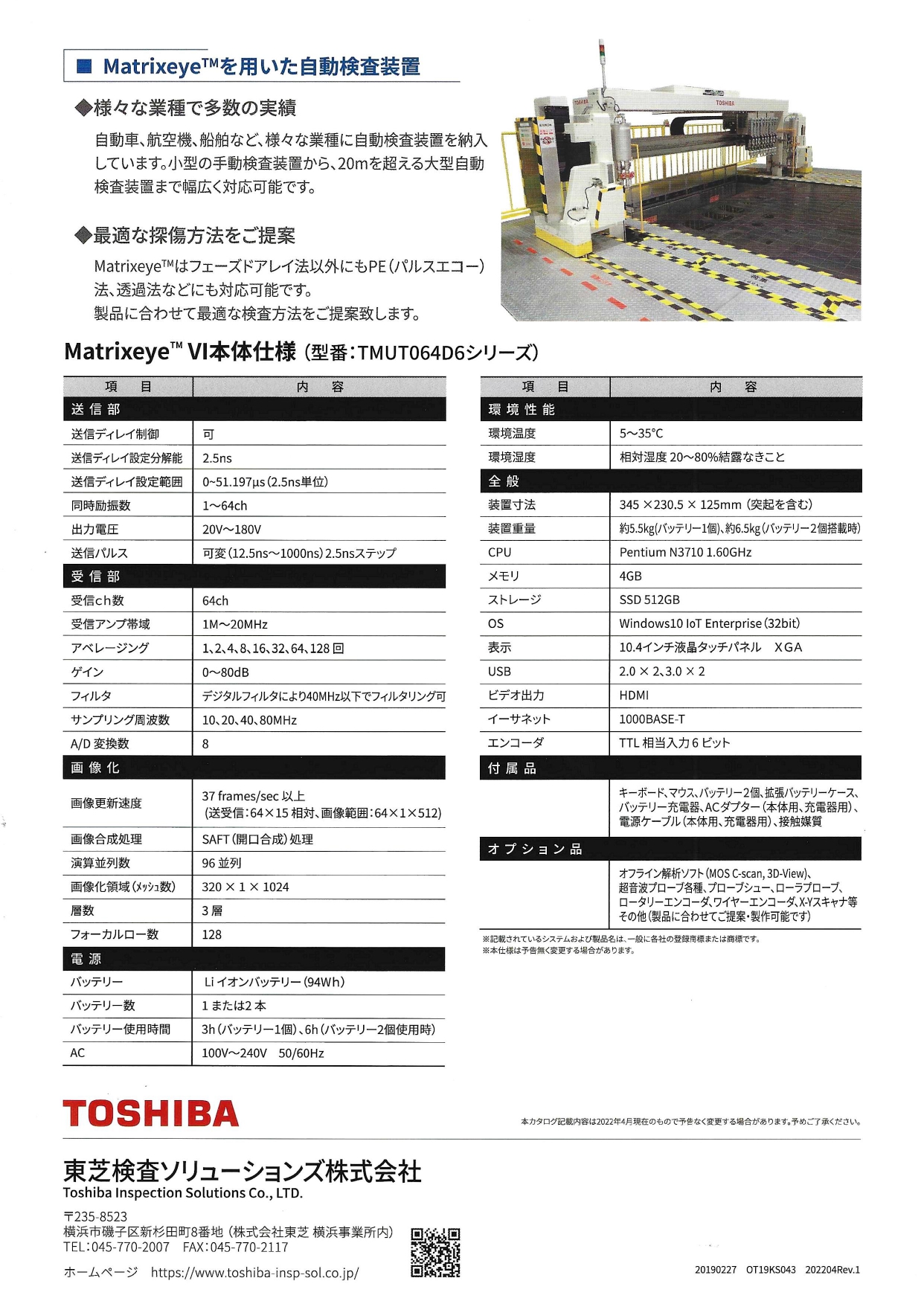

Specifications of the main body of Matrixeye™ ST for spot welding inspection
※The specifications above are subject to change without notice.
Specifications of spot welding inspection software
※The specifications above are subject to change without notice.
