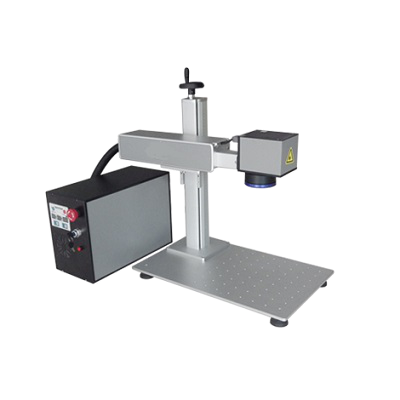

Fiber Laser Marker

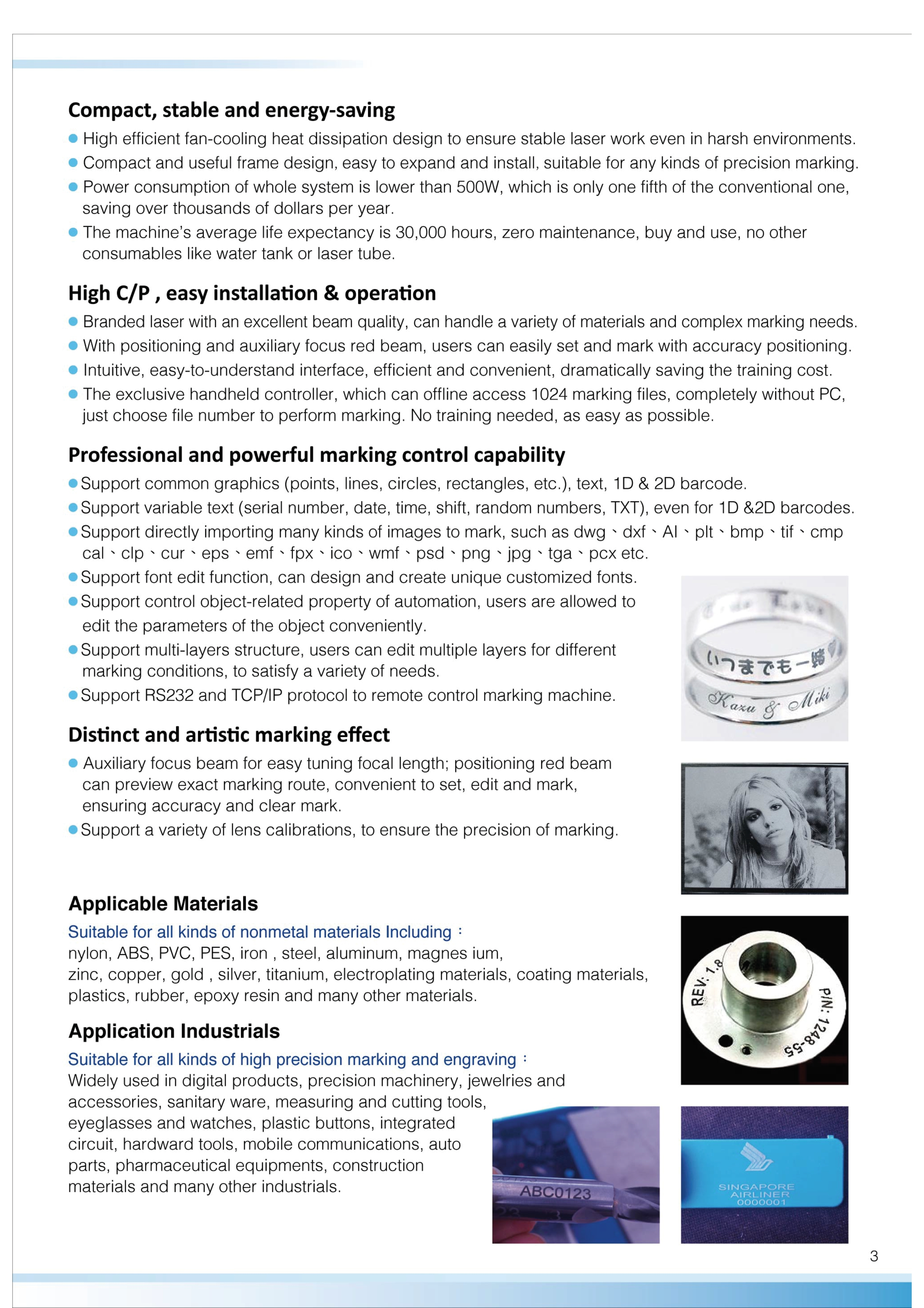

  • Compact, stable and energy saving
  • High C/P, easy installation and operation
  • Professional and powerful marking control capability
  • Distinct and artistic marking effect

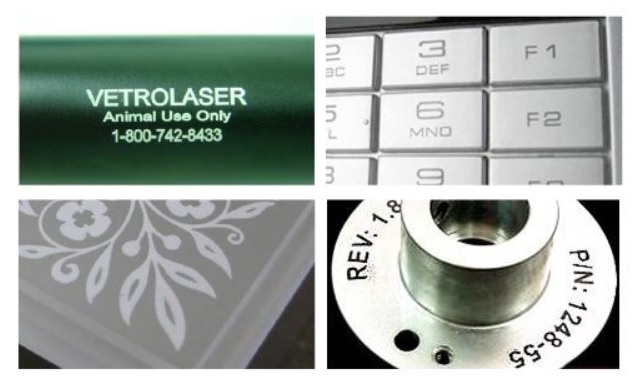

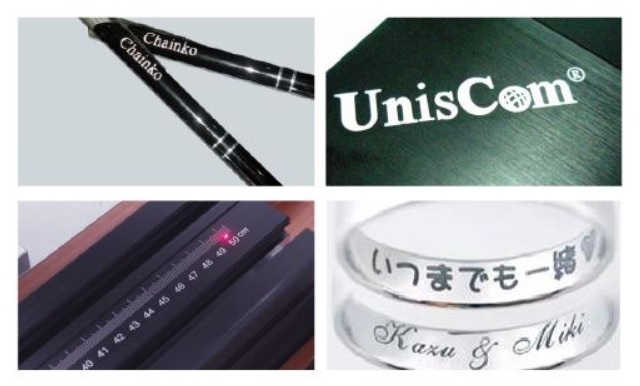

  • Applicable Materials:
    – nylon, ABS, PVC,  PES, iron, steel, aluminum, magnesium, zinc, copper, gold, silver, titanium, electroplating materials, coating material, plastic, rubber, epoxy resin and many other materials.
  • Application Industrials
    – Suitable for all kinds of high precision marking and engraving


Model ILF-20 / 20M ILF-30 / 30M
Specification Laser power 20W 30W
Wavelenth 1064nm
Standard Marking Area 110*110mm
Optional Marking Area 70*70mm, 160*160mm, 200*200mm
Maximum Marking Speed ≤7000mm/s
Minimum Line Width 0.02mm
Minimum letter English: 0.2 x 0.2mm
Marking Depth < 1mm
Location precision ≤0.0176mm
Resetting positioning accuracy 0.02
Electrical interface support pedal switch ,I/O ,rotary-axis port
Precision correction of galvanometer, provide precision grid calibration file
High precision digital scan head 10mm spot(with working status indicator light)
Working environment needs Electrical requirements Ac 220V±10%.50HZ.5Amp OR , Ac 110V±10%.50HZ.10Amp
Unit Power < 500 w
Operational temp range 5-40℃
Operational humidity range 5%-76%, Non-condensing
Physical dimension Laser head 512*80*80mm
Chassis 410*282*193mm
Weight 20kg
Standard accessories Cable length between laser head and chassis 1.7m
Laser goggles, pedal switch, U disk
Optional accessories Light lifter workbench dimension:610*550*340mm,lifting range:90~490mm
Light lifter desktop dimension:760*750*520mm,lifting range:90~490mm

Rotation axis: holding range for internal jaws:2-22mm(inside),25-70mm(outside),external


Protective cover :The maximum angle is turned on, Meet the needs of non-smoking workplaces in shopping malls and offices
Smoke purify machine: Low noise, high efficiency, conducive to clean and beautiful work space, easy to move
