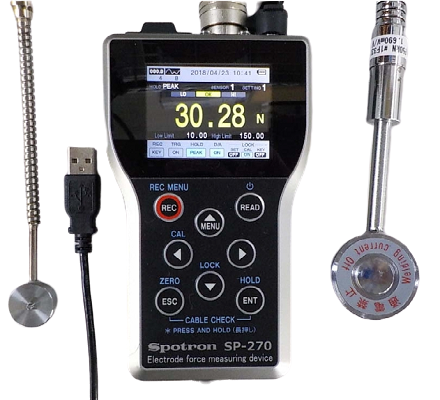

Welding Force Gauge SP-270 (Digital )

SP-270 is an advanced model for measuring and analyzing electrode force of spot welding.
Multi-function is equipped in the compact unit which supports mobility and precise measurement.

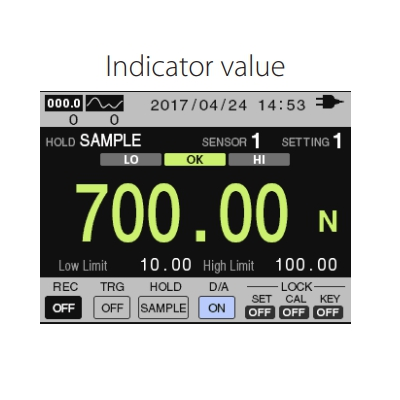

  • Clear display [ 4inch TFT Color LCD ]. Language (Japanese or English) selectable.
  • Real time continuous digital display [ 1000 sampling/sec ]

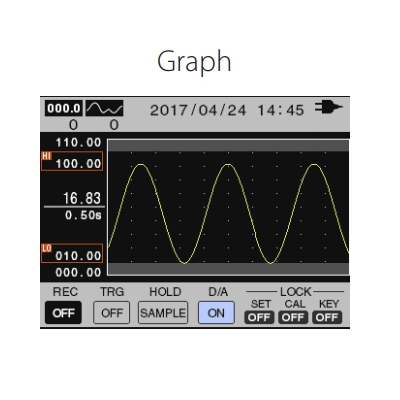

  • Graphic display of electrode force waveform with adjustable time axis

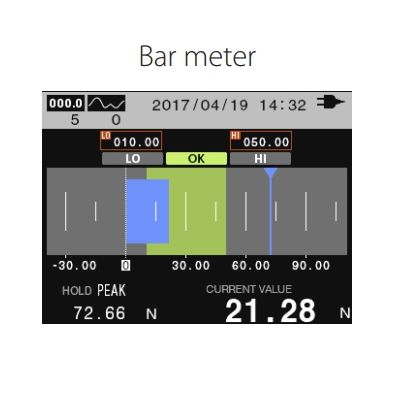

  • Bar meter display allows easy judgement of measured force between upper and lower limit.
  • Output function (electrode force per 1msec) to PC with USB connection and free special software
  • Common power souce [ dry cell and USB bus power ]
  • Auto power off function with variable time
  • Maximum 6 channels to exchange different sensors(option) for suitable range
