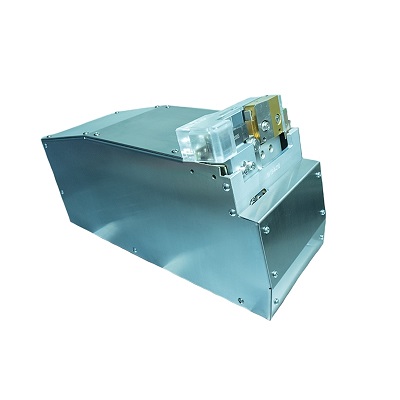

ULTRASONIC WIRE SPLICER

20KHz-4000W high power output

Specifications:

• Frequency: 20KHz
• Input voltage: 200-245V, 50/60 Hz
• Output power: 4000W
• 270 mm x 200 mm x 500 mm (height x width x length)
• 6 bar clean, dry air

Description

Product advantages:

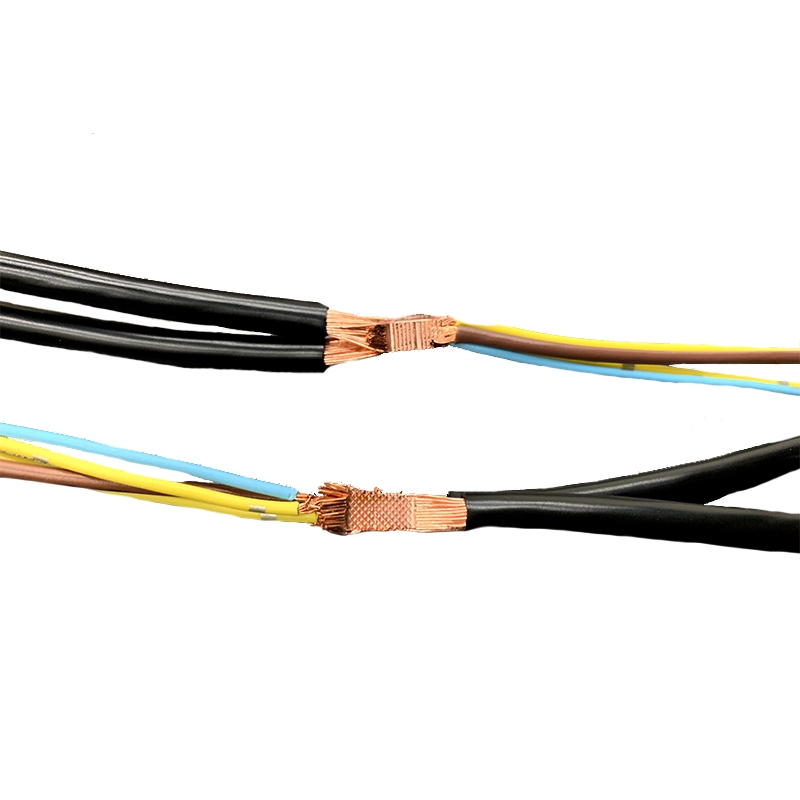

  • Comprehensive ultrasonic wire splicer for welding electrical wires of specifications1-28mm²
  • Fully auto ultrasonic frequency tracking system – power up to 4000W
  • A 10-inch ultrasonic touch screen
  • Welding modes – time, energy, power
  • Fully auto adjustable welding parameters and database
  • Electric motor automatically adjusts the splicing width
  • Unique four-piece welding tip structure to effectively extend the service life of consumable tool to achieve lowest maintenance cost
  • Removable tip technology for low-cost and extended service life of tool
