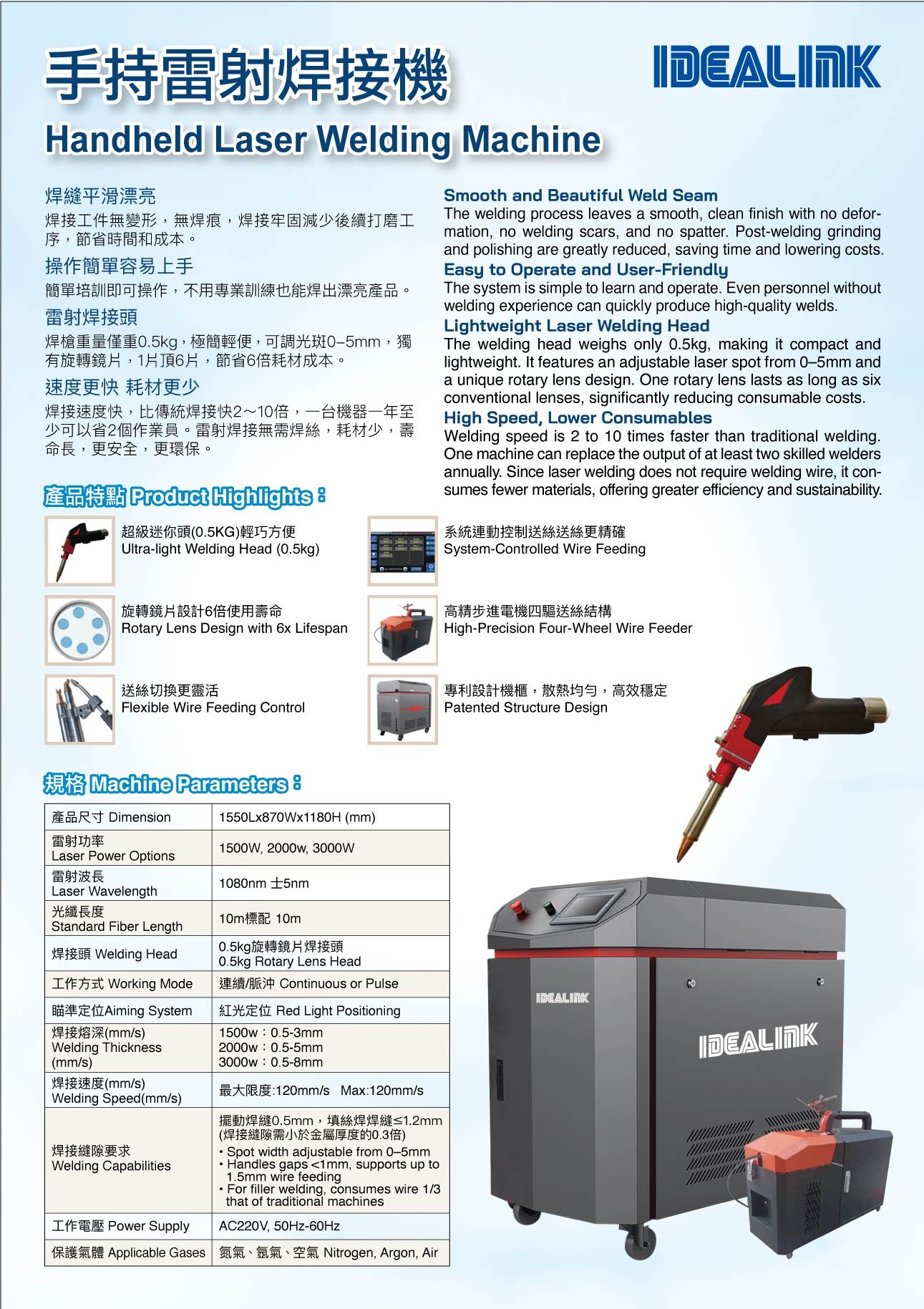

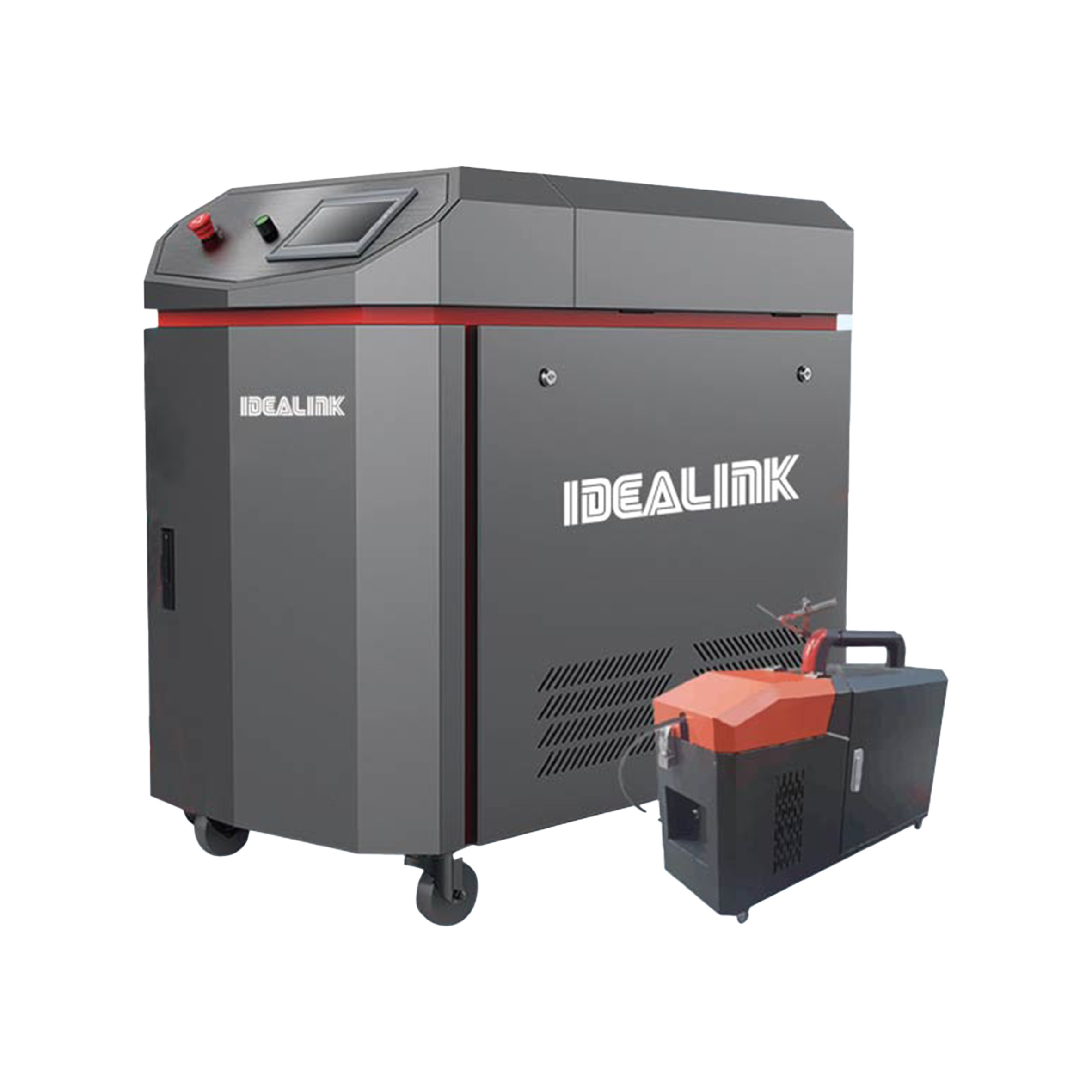

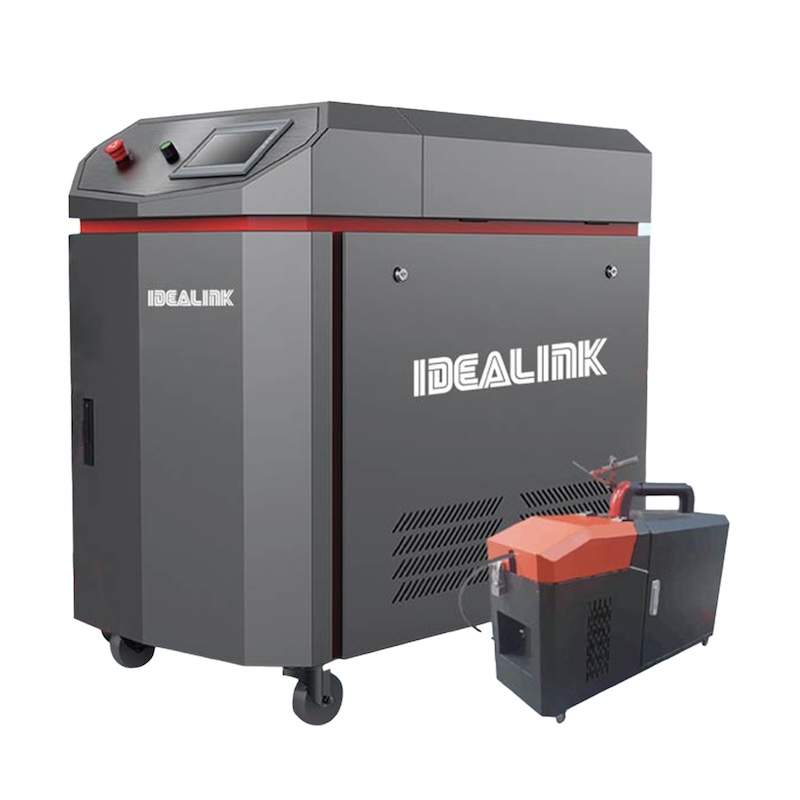

Handheld laser welding machine
Key Features & Descriptions
Smooth and Beautiful Weld Seam
The welding process leaves a smooth, clean finish with no deformation, no welding scars, and no spatter. Post-welding grinding and polishing are greatly reduced, saving time and lowering costs.
Easy to Operate and User-Friendly
The system is simple to learn and operate. Even personnel without welding experience can quickly produce high-quality welds.
Lightweight Laser Welding Head
The welding head weighs only 0.5kg, making it compact and lightweight. It features an adjustable laser spot from 0–5mm and a unique rotary lens design. One rotary lens lasts as long as six conventional lenses, significantly reducing consumable costs.
High Speed, Lower Consumables
Welding speed is 2 to 10 times faster than traditional welding. One machine can replace the output of at least two skilled welders annually. Since laser welding does not require wire welding, it consumes fewer materials, offering greater efficiency and sustainability.
Product Highlights
- Ultra-light Welding Head (0.5kg)
超級迷你頭(0.5KG)輕巧方便 - Rotary Lens Design with 6x Lifespan
旋轉鏡片設計6倍使用壽命 - Flexible Wire Feeding Control
送絲切換更靈活 - System-Controlled Wire Feeding
系統驅動控制送絲線更精確 - High-Precision Four-Wheel Wire Feeder
高精步進電機四驅送絲結構 - Patented Structure Design
專利設計機構，散熱均勻、高效穩定
Machine Specification
- Dimensions: 1550L x 870W x 1180H (mm)
- Laser Power Options: 1500W, 2000W, 3000W
- Laser Wavelength: 1080nm ±5nm
- Standard Fiber Length: 10m
- Welding Head: 0.5kg Rotary Lens Head
- Working Mode: Continuous or Pulse
- Aiming System: Red Light Positioning
- Welding Thickness (mm/s):
- 1500W: 0.5–2mm
- 2000W: 0.5–3mm
- 3000W: 0.5–5mm
- Welding Speed (mm/s): Max:120mm/s
- Welding Capabilities:
- Handles gap <0.5mm, Supports up to 1.2mm wire feeding
- Gap should be less then 0.3x of the metal thinkness
- Power Supply: AC220V, 50Hz-60Hz
- Applicable Gases: Nitrogen, Argon, Air
